NDIR CO₂ Sensor

1. NDIR Measurement Principle

NDIR CO₂ sensor uses the principle that the gas to be measured absorbs infrared rays in a specific wavelength range, and the degree of absorption depends on the concentration. NDIR is an abbreviation for Non-Dispersive InfraRed.
Infrared rays emitted from the light source are measured by an infrared detector after passing through the gas. The amount of infrared light received by the infrared detector changes when light is absorbed by gas.
The infrared detector is equipped with an optical filter that removes infrared rays of wavelengths that are not needed for measurement, and by measuring only infrared rays in a specific wavelength range, interference other than the target gas is minimized.
NDIR CO₂ sensor is measuring the wavelength of both the sample (target wavelength) and the reference (non-target wavelength). By knowing the change of the reference and the difference of these light amounts, the change of the light amount due to the aging and dirt of the light source and the detector is canceled, and stable measurement is realized for a long period of time without periodic calibration.

In case of CO₂ molecules, it has the property of selectively absorbing infrared rays with a wavelength of 4.26μm. When the CO₂ concentration is high, the attenuation of the incident light is large, and when the CO₂ concentration is low, the attenuation is small.
The amount of infrared energy absorbed is determined by the CO₂ gas concentration and the length of the measurement cell. This is called Lambert-Beer law, and the detector output and concentration have an exponential relationship.
NiCeRa NDIR CO₂ sensor consists of an infrared light source, a sample cell, an optical filter, and an infrared detector.
The optical filter has a 2-channel structure. One is the sample wavelength in the band of infrared rays emitted from the light source that is absorbed by CO₂, and the other is the reference wavelength that is not affected by CO₂ and other miscellaneous gases. Since the infrared absorption amount itself is measured by the absorption ratio, stable measurement can be continuously achieved while compensating for the effects of aging of the light source.

Lambert–Beer Law

There is a certain relationship (Lambert-Beer law) between the concentration of a medium and the rate at which light is absorbed by the medium. When light passes through a uniform medium, the amount of decrease in the intensity of the transmitted light is proportional to the intensity of the light and the thickness of the medium (optical path length) (Lambert’s law). If the medium is a solution, the amount of light absorbed is proportional to the concentration of the solution if the mediums are of equal thickness (Beer’s law). These are expressed by the following equations.

A = log (I₀/I) = ε・c・l

A: Absorbance
I₀: Incident Light Intensity
I: Transmitted Light Intensity
ε: Absorption Coefficient
c: Solution Concentration
l: Medium Thickness

When the concentration “c” of the solution is expressed in M (mol/liter) and the optical path length “l” is expressed in cm, “ε” is called the molecular absorption coefficient, and the unit is M^-1cm^-1.
I/I₀(%) is called transmittance “T”.

Measurement Method

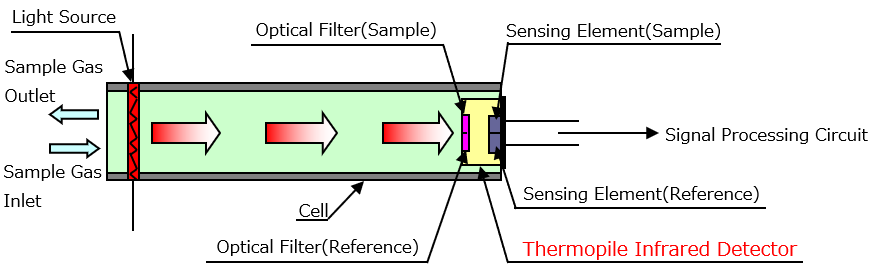

2-wavelength Thermopile Infrared Sensor Type (NiCeRa NDIR CO₂ Sensor)
The method of detecting two wavelengths for measurement and reference is adopted. With these, changes in characteristics due to aging etc. are compensated. Highly accurate measurement is possible for a long period of time without calibration.

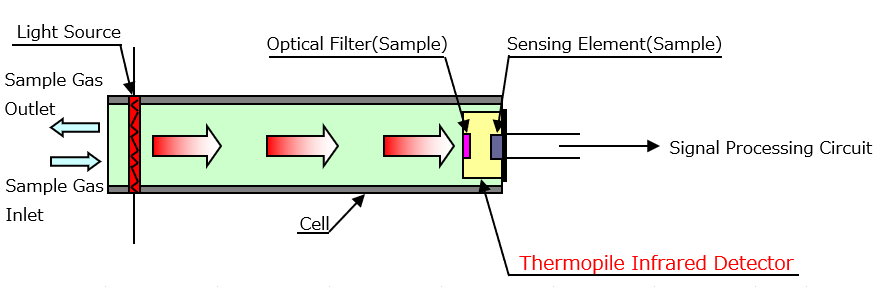

Single Wavelength Thermopile Infrared Sensor Type (Other Companies’ System)
There is only one wavelength for measurement. Periodic calibration is required. In order to compensate it, a method is taken in which a relatively low concentration environment is regarded as a constant concentration and corrected automatically by software.

2. Applications

Air Quality
Oil fan heater
Kerosine stove
Air conditioner
Intelligent building system …etc.

Alarm signal prompting ventilation is output when a certain CO₂ concentration is reached.

Automotive
In-car CO₂ concentration monitor …etc.

When CO₂ exceeds a certain concentration, outside air is introduced.

Agriculture
House for agriculture
Plant factory …etc.

It is used for environmental monitors in greenhouses, detection of CO₂ concentration in storages, etc., and control for maintaining the optimum environment for plant.
